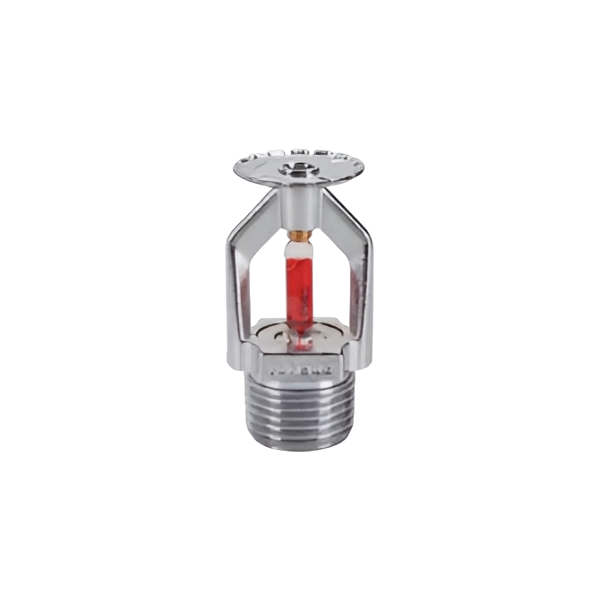

The FRD002 Standard Pendent Fire Sprinkler is engineered for reliable ceiling-mounted fire suppression in commercial and industrial spaces. Designed with a fast, thermally sensitive bulb and standard K-factor of 5.6, it ensures timely activation and effective water distribution. Available in both standard and quick response types, each variant is color-coded by temperature rating, providing flexibility across various fire protection scenarios.
Reliable pendent fire sprinkler with color-coded temp ratings and standard or quick response.
• K Factor: K 5.6 @ US (80@Metric)
• Thread Size: DN15 (1/2")
• Connecting Thread: BSP (NPT Optional)
• Main Material: Brass
• Sensitive Element: YF Brand Glass Bulb (JOB Glass Bulb Optional)
• Seal Material: NBR (Teflon Optional)
• Surface Finishing: Chrome (Natural Brass Optional)
• Thread Size: 1/2” (DN15)
• K-Factor: 5.6
• Response Type: Standard & Quick
• Temperature Ratings: 57°C, 68°C, 79°C, 93°C, 141°C
• Bulb Sizes: Ø5mm (Standard), Ø3mm (Quick)
• Bulb Colors: Orange, Red, Yellow, Green, Blue
