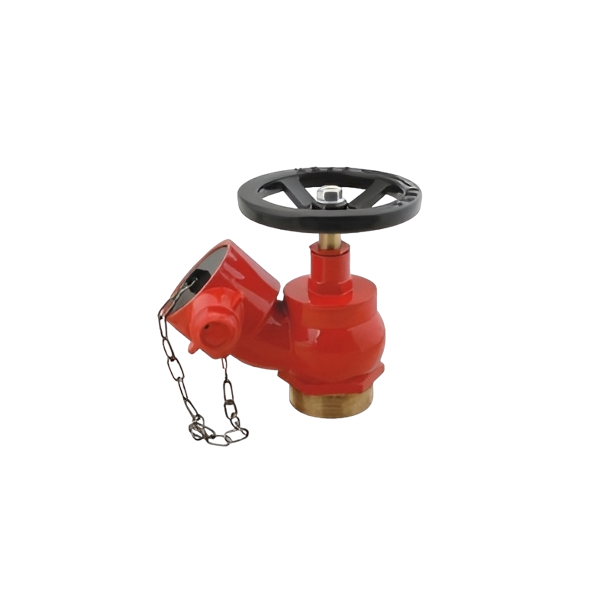

The FRD-OS Thread Oblique Hydrant Valve is a compact and dependable solution for water flow control in firefighting and building protection systems. Featuring a threaded inlet and an angled outlet, it allows for a streamlined connection to fire hoses while minimizing space constraints. Its oblique design enhances hose alignment, making it ideal for installations where space is limited or wall-mounted access is required.
Threaded oblique hydrant valve for compact and efficient water outlet control.
• Body: Copper Alloy to EN 1982
• Hand Wheel: Grey Cast Iron to BS EN 1561
• Blank Cap: Copper Alloy to EN 1982
• Disc Assembly: Brass w/ replaceable facing rubber
• Stem: Brass
• Chains: SUS304
• Cap: ABS Plastic
• Test Pressure: Valve Seat @ 16.5 Bar, Body: @ 22.5 Bar
• Working Pressure: PN16
• Outlet: 2.5" BS336 Female Inst.
• Inlet Flange: 2.5" Male BSP
