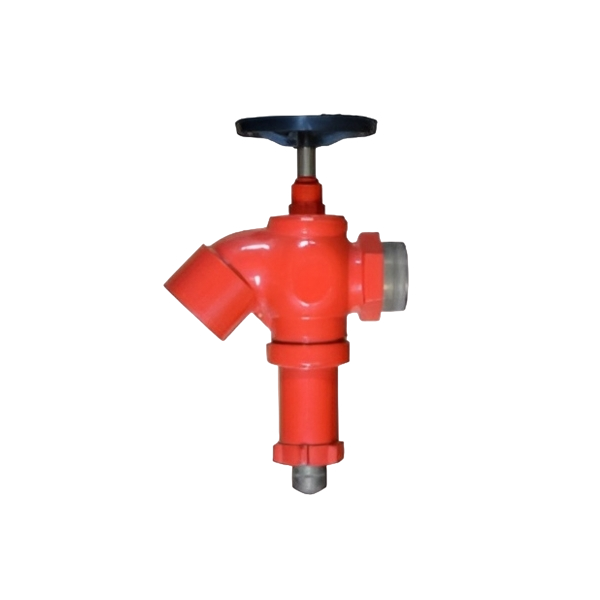

The FRD-PBS Thread Pressure Regulating Valve is designed to stabilize outlet pressure in firefighting systems, ensuring equipment safety and consistent performance. With its threaded connection, it allows for flexible and secure integration in compact or retrofit installations. Ideal for buildings or hydrant systems where pressure control is essential to prevent over-pressurization and equipment damage.
Threaded pressure-regulating valve for controlled and reliable water flow.
• Body: Copper Alloy
• Hand Wheel: Grey Cast Iron
• Black Cap: Copper Alloy
• Disc Assembly: Brass w/ NBR
• Stem: Brass
• Chains: SUS304
• Cap: ABS Plastic
• Test Pressure: 30 Bar
• Inlet Pressure: 7-20 Bar
• Outlet Pressure: 5-8 Bar Adjustable
• Inlet Flange: 2.5" BS4504, 3" BS4504
• Outlet Flange: 2.5" BS336 Female Inst.
