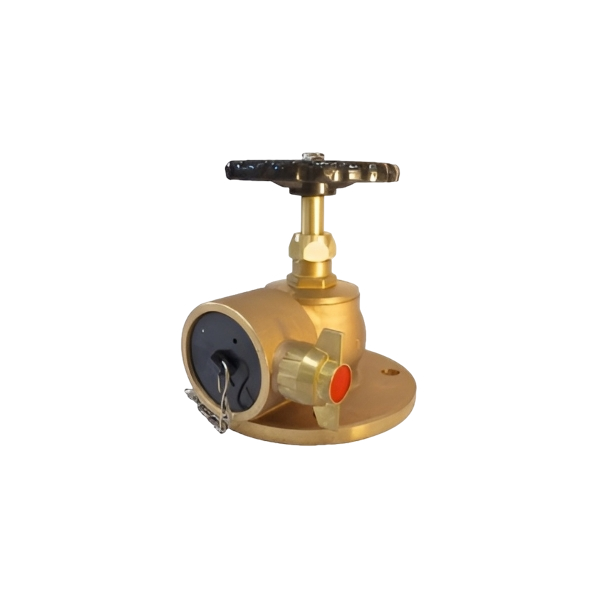

The FRD-RR Flange Right Angle Hydrant Valve is engineered for installations where space and positioning demand a 90-degree outlet flow. Its robust flanged connection ensures a leak-proof fit in fixed piping systems, while the angular design allows optimal hose orientation—ideal for wall-mounted hydrant boxes or tight corner setups. Built for durability and quick response, it’s a reliable asset in any firefighting infrastructure.
Right-angle hydrant valve with flanged inlet for efficient corner-mounted installations.
• Body: Copper Alloy to EN 1982
• Hand Wheel: Grey Cast Iron to BS EN 1561
• Black Cap: Copper Alloy to EN 1982
• Disc Assembly: Brass w/ replaceable facing rubber
• Stem: Brass
• Chains: SUS304
• Cap: ABS Plastic
• Test Pressure: Valve Seat @ 16.5 Bar, Body @ 22.5 Bar
• Working Pressure: PN16
• Outlet: 2.5' BS336 Female Inst.
• Inlet Flange: 2.5" BS4504
