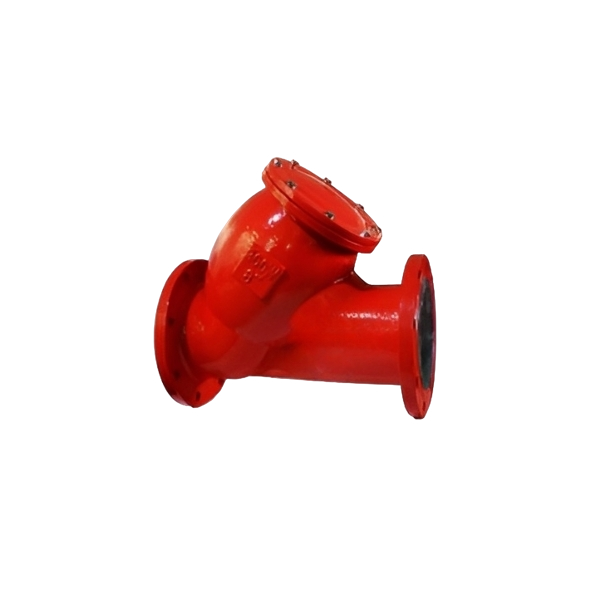

GL41X

The GL41X Flange End Y Strainer is designed to protect valves, pumps, and flow equipment by capturing debris and particulates from liquid systems. Its Y-shaped configuration allows easy access to the mesh screen for cleaning and maintenance. The flanged ends ensure stable, leak-free installation in fire protection and industrial water systems. Built for reliability, it extends equipment life and maintains optimal system performance with minimal pressure drop.

Durable Y-type strainer with flanged ends for efficient debris filtration in pipelines.

• Flange End: ANSI150LB/GB Standard/BS Standard

• Body Material: Ductile Iron, QT450

• Working Pressure: 16 Bar

• Nut & Bolt Material: SS304 Stainless Steel

• Filter Material: SS304 Stainless Steel

• Surface Finishing: Epoxy Red or Blue

• Inch: 2, 2.5, 3, 4, 5, 6, 8, 10, 12

• mm: 50, 65, 80, 100, 125, 150, 200, 250, 300

• Connection: Flange End

• Valve Type: Y Type

• Working Pressure: 1.0/1.6 Mpa

• Color: Red/Blue
