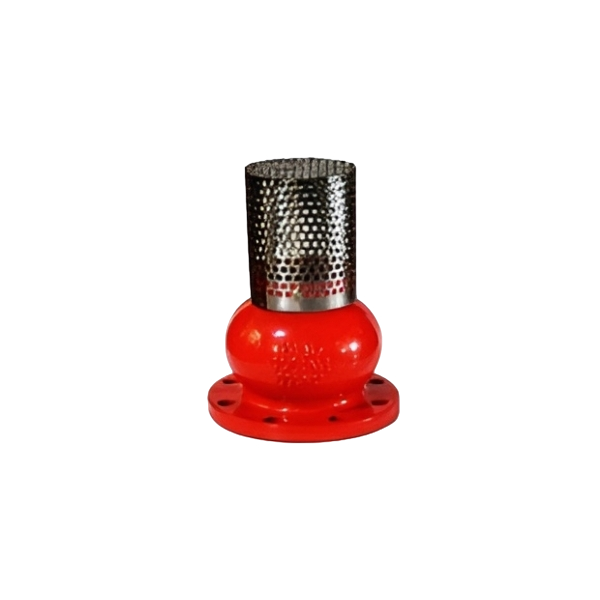

The H42X Flange End Foot Valve is a bottom-suction check valve designed to maintain pump priming and prevent reverse flow in suction lines. Equipped with a built-in strainer, it effectively blocks debris from entering the pipeline, safeguarding pumps and extending service life. Its flanged connection allows for secure mounting at the pipeline’s intake, making it a dependable component in firefighting, irrigation, and industrial water systems.
Flanged foot valve with built-in strainer to prevent backflow and debris entry in pump systems.
• Flange End: ANSI150LB/GB Standard/BS Standard
• Body Material: Ductile Iron, QT450
• Filter Net Material: SS304, Stainless Steel
• Surface Finishing: Epoxy Red or Blue
• Inch: 2, 2.5, 3, 4, 5, 6, 8
• mm: 50, 65, 80, 100, 125, 150, 200
• Connection: Flange End
• Valve Type: Foot Check
• Working Pressure: 1.0/1.6 Mpa
• Color: Red/Blue
