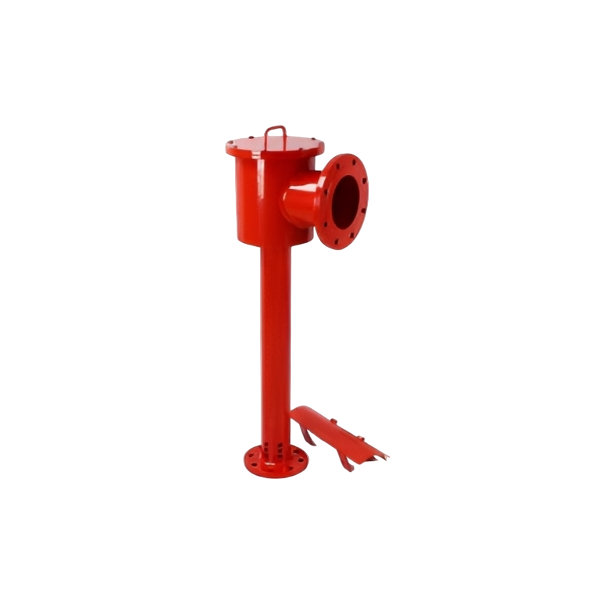

The PCL Low Expansion Foam Chamber is designed to introduce and distribute foam solution into storage tanks, especially for flammable or combustible liquid containment. It ensures effective surface-sealing foam application with low expansion for gentle and efficient blanketing, minimizing turbulence and vapor release during fire suppression.
Low-expansion foam chamber for safe storage tank protection.
• Expansion: Low Expansion ≥ 5 Times
• Flange End: ANSI / BS4504 / GB
• Main Material: Carbon Steel
• Installation Type: Vertical Installation
• Working Pressure Range: 0.3 - 0.7 MPa
• Rated Working Pressure: 0.5 MPa
• 25% Liquid Drain Time: ≥ 120s
• Surface Finishing: Epoxy Fire Red
• Style: Low Expansion, Vertical
• Flow Rate: 240 LPM, 480 LPM, 960 LPM, 1440 LPM
• Inlet Size: 50 mm(2"), 65mm (2.5"), 80mm (3"), 100mm (4")
• Outlet Size: 80mm (3"), 100mm (4"), 150mm (6"), 200mm (8")
