Z41X

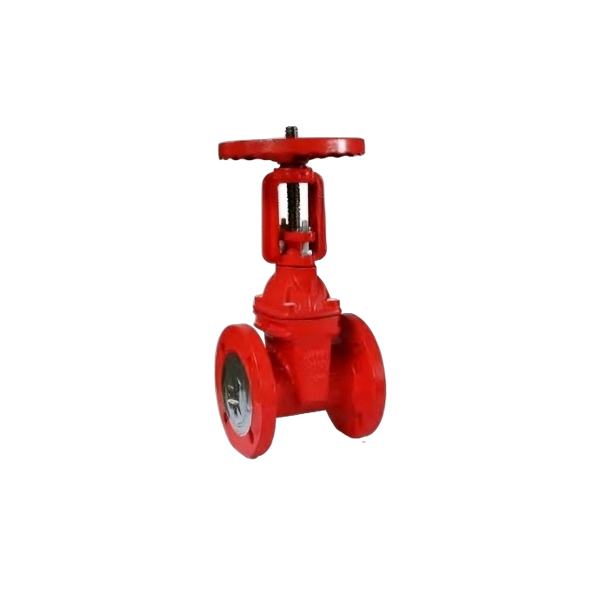

The Z41X Flange End Rising Stem Gate Valve is designed for reliable shutoff in fire protection and water supply systems. Its rising stem mechanism provides a clear visual indicator of valve position—critical for inspection and operation. With a durable body and flanged connections, it ensures a secure, leak-proof fit in pipeline networks. Ideal for applications requiring dependable flow isolation with easy status verification.

Rising stem gate valve with flange ends for clear visual operation and flow control.

• Flange End: ANSI150LB/JIS 10K/BS5404

• Stem Material: 2CR13 Stainless Steel

• Support Material: Ductile Iron, QT450

• Body Material: Ductile Iron, QT450

• Seal Material: Ductile Iron, QT450, Covered by NBR

• Surface Finishing: Epoxy Red or Blue

• Inch: 2, 2.5, 3, 4, 5, 6, 8, 10, 12, 14, 16

• mm: 50, 65, 80, 100, 125, 150, 200, 250, 300, 350, 400

• Connection: Flange End

• Valve Type: OS&Y

• Working Pressure: 1.0/1.6 Mpa

• Color: Red/Blue
