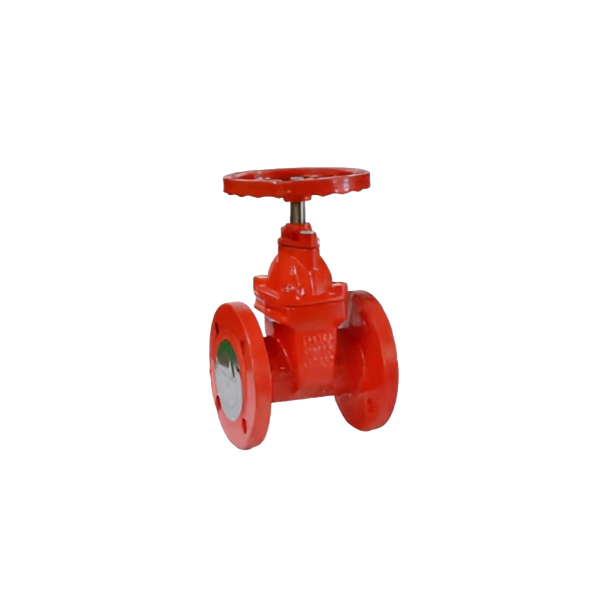

The Z45X Flange End Non-Rising Stem Gate Valve offers efficient flow isolation where vertical clearance is limited. Unlike rising stem types, the stem remains in place during operation, making it ideal for underground or confined installations. Engineered with durable materials and flange-end connections, it ensures tight sealing, corrosion resistance, and long-term reliability in fire protection and general water systems.
• Flange End: ANSI150LB/GB Standard/BS Standard
• Stem Material: 2CR13 Stainless Steel
• Bonnet Material: Ductile Iron, QT450
• Body Material: Ductile Iron, QT450
• Seal Material: Ductile Iron, QT450, Covered by NBR
• Surface Finishing: Epoxy Red or Blue
• Inch: 2, 2.5, 3, 4, 5, 6, 8, 10, 12, 14
• mm: 50, 65, 80, 100, 125, 150, 200, 250, 300, 350
• Connection: Flange End
• Valve Type: NRS
• Working Pressure: 1.01/1.6Mpa
• Color: Red/Blue
