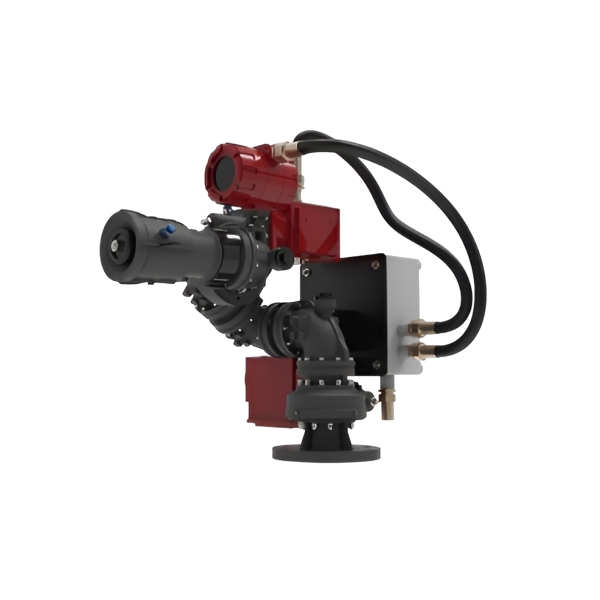

The ZDMS-EX Series is a precision-engineered automatic fire monitor designed for hazardous and flammable environments. Built with explosion-proof components and infrared detection, it delivers fast, reliable fire response in oil depots, chemical plants, and other high-risk facilities—ensuring critical protection where it's needed most.
Explosion-proof automatic fire monitor for hazardous industrial environments.
• Hard Anodized Aluminum Alloy Construction
• Laser Positioning, High-Definition Screen Monitoring
• Straight Stream & Fog or Straight Stream Nozzle
• Vertical Travel of 120°, from - 90° to +30°
• 360° rotation horizontally
• Electric control Jetting Pattern: Straight stream, Fog
• Electric driver and control unit box are waterproof
• Optional Power Supply 12V/24V DC (Optional), or 100 - 230AC
• Explosion Proof: Exd II BT4GB
• Flow Rate: 1200, 1800 LPM
• Max Protection Radius: 50 meters, 55 meters
• Working Pressure: 8 Bar
• Targeting Time: ≤ 60s
• Detector Type: Infrared Ray & UV Sensor Technology
